SMD Power Inductors Series
Classification:
RoHS compliant.
Super low resistance, ultra high current rating.
Contact:
Features
● RoHS compliant.
● Super low resistance, ultra high current rating.
● High performance (l sat) realized by metal dust core.
● Frequency Range: up to 1MHz.
Applications
● PDA, notebook, desktop, and server applications.
● Low profile, high current power supplies.
● Battery powered devices.
● DC/DC converters in distributed power systems.
● DC/DC converters for field programmable gate array.
Parameter
SMD power inductors are compact, surface-mount components designed for efficient energy storage, filtering, and power management in modern electronic circuits. Engineered with high-quality magnetic materials and precision winding techniques, these inductors offer low DC resistance, high current handling, and excellent saturation characteristics, ensuring stable performance under varying load conditions. Ideal for use in DC-DC converters, voltage regulators, power supply modules, and automotive or consumer electronics, SMD power inductors provide reliable energy transfer and reduce electromagnetic interference (EMI) in compact electronic devices. Their surface-mount design supports automated assembly, improving production efficiency and consistency. Available in various sizes, inductance values, and current ratings, SMD power inductors allow designers to optimize circuit efficiency, minimize losses, and ensure thermal stability. High-quality SMD power inductors are designed to withstand harsh operating conditions, including temperature fluctuations, vibration, and mechanical stress, ensuring long-term reliability and performance in demanding applications.

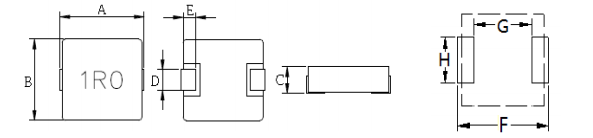

Shapes
(Unit:mm)
| Part No. | A(Max) | B(Max) | C(Max) | D | E | F | G | H |
| SM0415 | 4.90 | 4.50 | 1.50 | 1.5±0.5 | 1.0±0.3 | 4.95 | 2.16 | 2.30 |
| SM0402 | 4.90 | 4.50 | 2.00 | 1.5±0.5 | 1.0±0.3 | 4.95 | 2.16 | 2.30 |
| SM0503 | 5.90 | 5.20 | 3.00 | 2.0±0.5 | 1.0±0.3 | 7.00 | 3.00 | 2.50 |
| SM0505 | 5.90 | 5.20 | 5.00 | 2.0±0.5 | 1.0±0.3 | 7.00 | 3.00 | 2.50 |
| SM0603 | 7.80 | 7.00 | 3.00 | 3.0±0.3 | 1.5±0.5 | 7.37 | 3.71 | 3.43 |
| SM1004 | 11.80 | 10.80 | 4.00 | 3.0±0.5 | 2.0±0.5 | 13.60 | 5.40 | 4.10 |
| SM1205 | 14.50 | 13.50 | 5.00 | 3.5±0.5 | 2.5±0.5 | 14.50 | 8.00 | 4.50 |
| SM1206 | 14.50 | 13.50 | 6.00 | 3.5±0.5 | 2.5±0.5 | 14.50 | 8.00 | 4.50 |
| SM1770 | 17.50 | 19.00 | 7.00 | 11.7±0.3 | 3.3±0.5 | 19.50 | 11.20 | 13.00 |
