EE CORES
Classification:
High-Frequency Low-Loss Properties: Exhibit minimal core loss under high-frequency operation (≤3 MHz), ideal for medium-to-high-frequency energy conversion systems
High Permeability: High initial permeability (μi:1500–15000)
Contact:
Features
● High-Frequency Low-Loss Properties: Exhibit minimal core loss under high-frequency operation (≤3 MHz), ideal for medium-to-high-frequency energy conversion systems
● High Permeability: High initial permeability (μi:1500–15000)
● High Saturation Flux Density(Bs): 400–550 mT
● wide temperature range: -40°C to +125°C
● Low Coercivity Hc
Applications
● Switch-Mode Power Supplies (SMPS)
● Inverters & UPS
● Common-Mode Filters
● Broadband Transformers
● Vehicle Power Modules
● Magnetic Sensor Circuits
● RF Front-End Components
● Pulse Transformers
● Wireless Charging Systems
● EMI Suppression Beads
Parameter

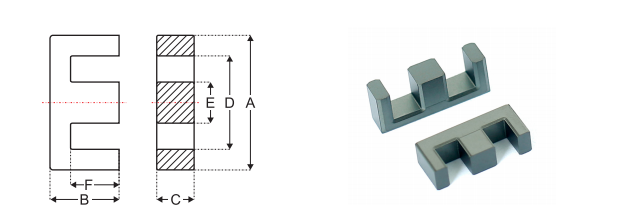

EE CORES Dimensions
| Type | A(mm)] | B(mm) | [amm) | D(mm)] | [E(mm) | F(mm) | B-F(mm) | Weightig |
| EE2020 | 20.0±0.5 | 10.0±0.2 | 5.65±0.3 | 15.6±0.3 | 14.1min | 172±0.25 | 2.8±0.2 | 8.06 |
| EE2218 | 22.0±0.5 | 9.5±0.2 | 5.7±0.3 | 5.7±0.3 | 15.6min | 5.7±0.25 | 3.8±0.2 | 9.06 |
| EE2225 | 22.0±0.41 | 126±0.2 | 5.75±0.25 | 5,75±0.25 | 15.6min | 9.0±0.2 | 3.6±0.2 | 111 |
| EE2520 | 25.4±0.5 | 10.0±0.2 | 16.4±0.3 | 16.4±0.3 | 18.5min | 16.9±0.25 | 3.1±0.2 | 10.74 |
| EE2230 | 22.1±0.5 | 15.35±0.25 | 5.75±0.25 | 5.75±0.25 | 15.6min | 11.35±0.3 | 4.0±0.25 | 12.7 |
| EE2525 | 25.3±0.5 | 12.8±0.25 | 17.0±0.3 | 172±0.3 | 18.0min | 9.3±0.25 | 35:0.25 | 23.81 |
| EE2820 | 28.5±0.5 | 104±0.21 | 10.7±0.3 | 7.3±0.3 | 18.8min | 6.4±0.3 | 4.0±0.25 | 23.3 |
| EE3811V1 | 138.0±0.41 | 6.1±0.15 | 20.0±0.31 | 16.0±0.3 | 1320±0.61 | 13.6±0.15 | 2.5±0.15 | 130.71 |
| EE4212 | 42.0±0.5 | 6.0±0.15 | 22.0±0.3 | 6.0±0.2 | 36.0±0.5 | 3.5±0.15 | 2.5±0.15 | 37.21 |
| EE4242 | 42.2±1.0 | 21.25±0.35 | 20.0±0.5 | 119±0.3 | 29.2min | 15.3±0.35 | 5.95±0.25 | 130 |
| EE4414 | 144.0±0.5 | 7.4±0.15 | 16.0±0.31 | 16.0±0.25 | 38.0±0.5 | 14.4±0.15 | 3.0±0.15 | 33.31 |
| EE55/55/21 | 55.15±1.05 | 27.5±0.25 | 20.75±0.3 | 16.95±0.3 | 37.5min | 18.9±0.3 | 8.6±0.3 | 236 |
| EE55/55/25 | 55.15±1.05 | 27.8±0.25 | 25.0±0.41 | 16.95±0.3 | 37.5min | 18.9±0.31 | 8.9±0.3 | 286 |
| EE65/65/27 | 65.2±1.2 | 1325±0.31 | 27.0±0.4 | 19.65±0.35 | 44.2min | 226±03 | 9.9±0.3 | 424 |
Electrical Characteristics
| Type | Core Parameters | ALvalue nH/N2±25% | |||||||
| C1(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | RP40 | RP44 | RP47 | RP90 | RP95 | |
| EE2020 | 1.46 | 46.4 | 31.7 | 1510 | 1500 | 1500 | 1600 | 1600 | 2100 |
| EE2218 | 1.20 | 43.2 | 36.0 | 156 | 1600 | 1600 | 1650 | 1650 | 2200 |
| EE2225 | 1.59 | 56.2 | 35.4 | 1988 | 1450 | 1450 | 1500 | 1500 | 2000 |
| EE2520 | 1.24 | 50.1 | 40.5 | 2028 | 1500 | 1500 | 1560 | 1560 | 2080 |
| EE2230 | 1.90 | 65.9 | 34.7 | 2288 | 1150 | 1150 | 1200 | 1200 | 1600 |
| EE2525 | 1.24 | 59.6 | 48.1 | 2863 | 1700 | 1700 | 1800 | 1800 | 2400 |
| EE2820 | 0.63 | 51.5 | 81.2 | 5183 | 3050 | 3050 | 3180 | 3180 | 4240 |
| EE3811V | 0.45 | 47.9 | 106.1 | 5088 | 3950 | 3950 | 4100 | 4100 | 5500 |
| EE4212 | 0.45 | 52.7 | 116.3 | 6133 | 4350 | 4350 | 4500 | 4500 | 6000 |
| EE4242 | 0.41 | 98.2 | 239.4 | 23501 | 5250 | 5250 | 5500 | 5000 | 7200 |
| EE4414 | 0.62 | 59.6 | 95.6 | 5694 | 3300 | 3300 | 3500 | 3500 | 4650 |
| EE55/55/21 | 0.35 | 123.2 | 352.8 | 43500 | 5750 | 5750 | 6000 | 6000 | 8000 |
| EE55/55/25 | 0.29 | 124.2 | 427.5 | 53121 | 6450 | 6450 | 6700 | 6700 | 9000 |
| EE65/65/27 | 0.28 | 149.0 | 535.0 | 79800 | 8600 | 8600 | 9000 | 9000 | 12000 |
