PQ CORES
Classification:
High-Frequency Low-Loss Properties: Exhibit minimal core loss under high-frequency operation (≤3 MHz), ideal for medium-to-high-frequency energy conversion systems
High Permeability: High initial permeability (μi:1500–15000)
Contact:
Features
● High-Frequency Low-Loss Properties: Exhibit minimal core loss under high-frequency operation (≤3 MHz), ideal for medium-to-high-frequency energy conversion systems
● High Permeability: High initial permeability (μi:1500–15000)
● High Saturation Flux Density(Bs): 400–550 mT
● wide temperature range: -40°C to +125°C
● Low Coercivity Hc
Applications
● Switch-Mode Power Supplies (SMPS)
● Inverters & UPS
● Common-Mode Filters
● Broadband Transformers
● Vehicle Power Modules
● Magnetic Sensor Circuits
● RF Front-End Components
● Pulse Transformers
● Wireless Charging Systems
● EMI Suppression Beads
Parameter

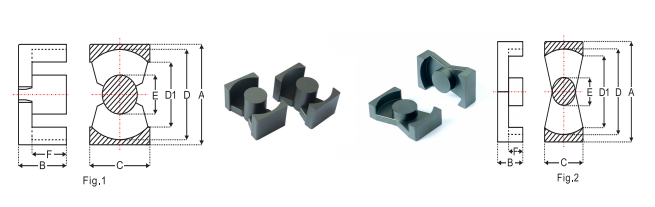

PQ CORES Dimensions
| Type | A(mm) | B(mm) | C(mm) | D(mm) | D1(mm) | E(mm) | F(mm) | B-F(mm) | Catalogue | Weigh(g/Vice) |
| PQ1615 | 16.4±0.35 | 74±02 | 100±0.3 | 1435±0.35 | 11.35±0.35 | 63±0.2 | 4.8±0.2 | 26±02 | I | 72 |
| PQ2720 | 27.0±0.5 | 10.4+0.21 | 18.9±0.4 | 23.0min | 17.0min | 11.7±0.31 | 6.2±0.2 | 42±0.2 | I | 3291 |
| PQ2725 | 27.0±0.5 | 127±025 | 18.9±04 | 23.0min | 17.0min | 11.7±0.3 | 8.5±0.2 | 42±0.25 | I | 387 |
| PQ3220 | 320+0.5 | 10.70±0.2 | 22.0±0.35 | 260min | 19.0min | 13.45±0.3 | 6.2±0.2 | 4.50±0.2 | I | 4731 |
| PQ3225 | 320±0.6 | 1270±02 | 22.0±0.35 | 260min | 19.0min | 13.45±0.3 | 8.4±0.2 | 430±0.2 | I | 5331 |
| PQ3230 | 32.0±0.6 | 152±0.21 | 220±05 | 270min | 19.0min | 13.45±0.3 | 10.7±02 | 45±0.2 | I | 59.6 |
| PQ3535 | 35-1±0.6 | 17.5±0.25 | 26.0±0.5 | 32.0±0.5 | 24.0±0.5 | 1435±0.3 | 12.6±0.15 | 49±0.15 | I | 811 |
| PQ3819 | 38.4±0.5 | 9.65+0.15 | 213+0.4 | 32.8+0.65 | 25.8min | 14.3±0.31 | 535±0.15 | 43±0.15 | II | 5211 |
| PQ4121 | 40.8±0.7 | 10.65±0.15 | 24.0±0.45 | 35.6±0.7 | 27.3min | 15.6±0.3 | 5.95±0.15 | 47±0.15 | II | 69 |
| PQ5036 | 50.0±0.8 | 181+0.5 | 31.55±0.6 | 44.0±0.7 | 33.3min | 19.6+0.5 | 111±0.3 | 7.0±0.15 | I | 164.6 |
| PQ50(1) | 50.0±0.8 | / | 31.55±0.6 | / | / | / | / | 7.0±0.15 | I | 100 |
Electrical Characteristics
| Type | Core Parameters | ALvalue nH/N2±25% | |||||||
| ci(mm-1) | Le(mm) | Ae(mm2) | Ve(mm3) | RP40 | RP50 | RP44 | RP47 | RP95 | |
| PQ1615 | 0.99 | 33.4 | 33.6 | 1120 | 2100 | 2100 | 2150 | 2150 | 2900 |
| PQ2720 | 0.41 | 46.6 | 114.9 | 5377 | 5200 | 5200 | 5400 | 5400 | 7200 |
| PQ2725 | 0.50 | 56.8 | 112.8 | 6406 | 4300 | 4300 | 4500 | 4500 | 6000 |
| PQ3220 | 0.34 | 50.8 | 147.6 | 7506 | 5600 | 5600 | 5800 | 5800 | 7800 |
| PQ3225 | 0.38 | 58.2 | 152.3 | 8866 | 5500 | 5500 | 5700 | 5700 | 7600 |
| PQ3230 | 0.46 | 68.7 | 148.5 | 10204 | 4700 | 4700 | 4900 | 4900 | 6500 |
| PQ3535 | 0.47 | 80.0 | 170.5 | 13641 | 4600 | 4600 | 4800 | 4800 | 6400 |
| PQ3819 | 0.35 | 55.1 | 159.0 | 8765 | 6400 | 6400 | 6600 | 6600 | 8900 |
| PQ4121 | 033 | 644 | 196.6 | 12661 | 5500 | 5500 | 5700 | 5700 | 7600 |
| PQ5036 | 0.28 | 86.7 | 315.0 | 27314 | 7800 | 7800 | 8150 | 8150 | 10800 |
