DSBR Series
Classification:
Various high power inductors are superior to be highsatruation for surface mouning
Inductance range from 10 μH to 820 μH
Contact:
Features
● Various high power inductors are superior to be highsatruation for surface mouning
● Inductance range from 10 μH to 820 μH
● Compact and thin
Applications
● Digital cameras,CD players,cellular phones,and PDAS
● communication equipments,DC/DC converters,etc.
Parameter

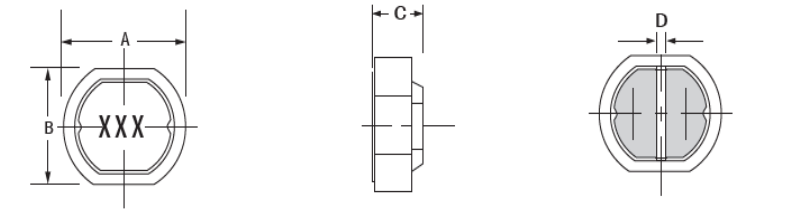

SHAPES AND DIMENSIONS (Unit:mm)
| Part No. | A | B | C | D |
| DSBR74 | 7.85±0.5 | 7.4±0.5 | 4.5±0.5 | 2.1 Typ. |
| DSBR105 | 10±0.5 | 9.6±0.5 | 5±0.5 | 2.9 Typ. |
| DSBR125 | 12.6±0.5 | 11.6±0.5 | 5.4±0.5 | 3.1 Typ. |
※Design as Customer's Requested Specifications.
PRODUCT SPECIFICATIONS
| SERIES | PART NUMBER |
INDUCTANCE(μH)@0A |
L test condition |
DCR(max)(Ω) |
Rated Current(max)(A) |
| DSBR | DSBR74 | 10~270 | 1KHz/0.25V | 0.07~1.3 | 1.65~0.33 |
| DSBR105 | 10~470 | 1KHz/0.25V | 0.06~1.5 | 2.06~0.33 | |
| DSBR125 | 10~820 | 1KHz/0.25V | 0.05~2.0 | 2.65~0.36 |
NOTES:
1.All test data is referenced to 25℃ ambient
2.Operating Temperature Range -55'℃ to +125℃
3. The maximum rated current is a DC curren which causes initial inductance to decrease by 10% ortemperature to rise by 40℃,which is smaller(at ambient reference temperature:20℃)
※Design as Customer's Requested Specifications.
