Hubei Ruiyuan Electronic Co.,Ltd.
DSP Series
Classification:
The surface mount inductors are designed for the smallestpossible size and high performance.
They are with high energystorage and very low resistance making them the idealinductors for DC-DC conversion in the following applications.
Contact:
Features
● The surface mount inductors are designed for the smallestpossible size and high performance.
● They are with high energystorage and very low resistance making them the idealinductors for DC-DC conversion in the following applications.
Applications
● Power supply choke for small electrical equipments such as VTR,LCDdisplay,Notebook,communication equipment,and so on.
Parameter

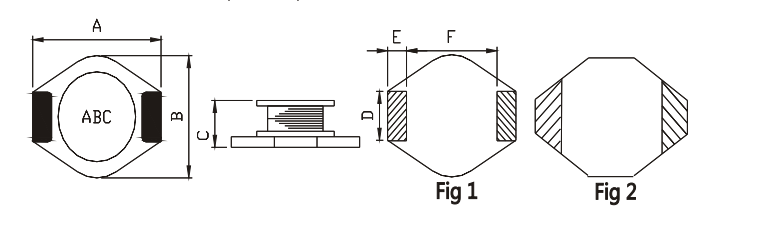

SHAPES AND DIMENSIONS (Unit:mm)
SHAPES AND DIMENSIONS (Unit:mm)
| Part No. | A Max. | B Max. | C Max. | D | E | F | Fig |
| DSP1608F | 6.60 | 4.45 | 2.92 | 1.27 | 1.02 | 4.32 | 2 |
| DSP3308F | 12.95 | 9.40 | 3.00 | 2.54 | 2.54 | 7.62 | 1 |
| DSP3316F | 12.95 | 9.40 | 5.21 | 2.54 | 2.54 | 7.62 | 1 |
| DSP3340F | 12.95 | 9.40 | 11.43 | 2.54 | 2.54 | 7.62 | 1 |
| DSP5022F | 18.54 | 15.24 | 7.11 | 2.54 | 2.54 | 12.70 | 1 |
