Hubei Ruiyuan Electronic Co.,Ltd.
DR2W TYPE
Classification:
Wide frequency range: 1 MHz to 1000 MHz
Extremely high resistivity: >10⁵ Ω·m
Contact:
Features
● Wide frequency range: 1 MHz to 1000 MHz
● Extremely high resistivity: >10⁵ Ω·m
● Low-Loss
● Best EMI Suppression Capability
● Wide temperature range: -55°C to +150°C
Applications
● RF transformers and chokes
● Switch-mode power supply (SMPS) transformers
● EMI filters
● Broadband noise suppression
● Antenna tuning and RF inductors
● Vehicle sensors and industrial controllers
Parameter

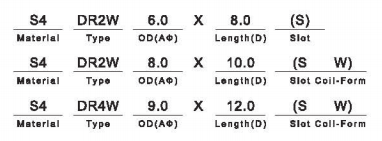

Part Number
DIMENSIONS(SIZE)
| NO | Ordering Code | Fig | AΦ | BΦ | D | E | F | G | H | P |
| 1 | DR2W 3x4 | 1 | 3.00±0.10 | 1.50±0.10 | 4.00±0.15 | 1.25±0.15 | 1.50±0.15 | 1.45 | ||
| 2 | DR2W 4X5.5(S) | 1 | 4.00±0.20 | 2.00±0.15 | 5.50±0.20 | 1.60±0.15 | 1.60±0.15 | 2.2 | ||
| 3 | DR2W 5X7(S) | 5 | 5.50±0.20 | 2.00±0.15 | 7.00±0.20 | 2.00±0.15 | 3.00±0.15 | 2/2.5 | ||
| 4 | DR2W 6X8.3(S) | 1 | 6.00±0.20 | 2.50±0.15 | 8.30±0.30 | 2.15±0.15 | 4.00±0.15 | 2.6/3.0/3.50 | ||
| 5 | DR2W 7XB(S) | 1 | 7.00±0.20 | 3.00±0.15 | 8.00±030 | 2.00±0.15 | 4.00±0.15 | 4/4.5/5.0 | ||
| 6 | DR2W 7.1x8.2(S) | 5 | 7.10±0.20 | 2.70±0.15 | 8.20±0.30 | 2.00±0.15 | 4.00±0.15 | 4.5/5 | ||
| 7 | DR2W 7.5x8(S) | 5 | 7.50±0.20 | 3.00±0.15 | 8.00±0.30 | 2.00±0.15 | 4.00±0.15 | 5/5.50 | ||
| 8 | DR2W 7.5x10(S) | 8 | 7.5±0.20 | 3.5±0.15 | 10.0±0.30 | 1.10±0.15 | 6.00±0.15 | 2.90±0.15 | 1.0 | 5.00 |
| 9 | DR2W 7.8x6.4(S) | 5 | 7.80±0.20 | 3.20±0.15 | 6.40±0.20 | 1.35±0.15 | 3.70±0.15 | 5.00 | ||
| 10 | DR2W 8x10(S) | 5 | 8.00±0.20 | 3.50±0.15 | 10.0±0.30 | 2.25±0.15 | 5.50±0.15 | 4/5.0 | ||
| 11 | DR2W 9x12(8) | 5 | 9.00±0.30 | 4.00±0.15 | 12.0±0.30 | 2.50±0.15 | 7.00±0.15 | 5/5.5/6.0 | ||
| 12 | DR2W 9.1x11(8) | 5 | 9.10±0.30 | 4.50±0.15 | 11.0±0.30 | 1.70±0.15 | 7.80±0.15 | 5.0 | ||
| 13 | DR2W 9.6x11(S) | 5 | 9.60±0.30 | 4.80±0.15 | 11.0±0.30 | 1.75±0.15 | 7.5±0.15 | 5/7.0 | ||
| 14 | DR2W 10x12(S) | 1 | 10.0±0.30 | 4.00±0.15 | 12.0±0.30 | 2.50±0.15 | 7.00±0.15 | 5/6/717.5 | ||
| 15 | DR2W 10x16(S) | 1 | 10.0±0.30 | 8.00±0.15 | 16.0±0.30 | 3.00±0.15 | 10.0±0.15 | 5/6/6.5/717.5 | ||
| 16 | DR2W 11z10(S) | 1 | 11.0±0.30 | 4.50±0.15 | 10.0±0.30 | 2.60±0.15 | 6.50±0.15 | 5/6/7/7.5 | ||
| 17 | DR2W 11.3x15(S) | 5 | 11.3±0.30 | 8.50±0.15 | 15.0±0.30 | 2.25±0.15 | 10.5±0.15 | 7.50 | ||
| 18 | DR2W 12x13(S) | 5 | 12.0±0.30 | 6.0±0.15 | 15.0±0.20 | 2.00±0.15 | 9.00±0.15 | 5/6/7/7.5/8.0 | ||
| 19 | DR2W 12x15(S) | 1 | 12.0±0.30 | 6.0±0.15 | 15.0±0.30 | 2.50±0.15 | 10.0±0.15 | 7.50 | ||
| 20 | DR2W 12x13.5(S) | 5 | 12.5±0.30 | 8.50±0.15 | 13.5±0.30 | 3.00±0.15 | 7.50±0.15 | 7.50 | ||
| 21 | DR2W 13x15(S) | 1 | 13.0±0.30 | 6.5±0.15 | 15.0±0.30 | 3.0±0.15 | 9.0±0.15 | 7.50 | ||
| 22 | DR2W 13x11.5(S) | 5 | 13.0±0.30 | 4.80±0.15 | 11.5±0.30 | 2.40±0.15 | 6.70±0.15 | 9.90 | ||
| 23 | DR2W 14x15(8) | 5 | 14.0±0.30 | 7.00±0.15 | 15.0±0.30 | 3.00±0.15 | 9.00±0.15 | 7.5//10.0 | ||
| 24 | DR2W 15x15(S) | 5 | 15.0±0.30 | 8.00±0.15 | 15.0±0.30 | 3.00±0.15 | 9.00±0.15 | 7.5/9.5 | ||
| 25 | DR2W 15x18(S) | 5 | 15.0±0.30 | 8.00±0.15 | 18.0±0.30 | 2.50±0.15 | 13.0±0.15 | 7.5/9.50 | ||
| 26 | DR2W 16x18(S) | 5 | 16.0±0.30 | 10.0±0.15 | 18.0±0.30 | 2.50±0.15 | 13.0±0.15 | 7/7.5/9.5/10 | ||
| 27 | DR2W 16x22 | 1 | 16.0±0.30 | 10.0±0.15 | 22.0±0.40 | 4.00±0.15 | 14.0±0.15 | 7.5 | ||
| 28 | DR2W 18x18(S) | 5 | 18.0±0.30 | 10.0±0.15 | 18.0±0.30 | 2.50±0.15 | 13.0±0.15 | 12.5 | ||
| 29 | DR2W 18x22(S) | 1 | 18.0±0.30 | 10.0±0.15 | 22.0±0.40 | 4.00±0.15 | 14.00±0.15 | 7.5/10 | ||
| 30 | DR2W 20x20(S) | 5 | 20.0±0.30 | 11.0±0.15 | 20.0±0.40 | 3.00±0.15 | 14.0±0.15 | 15.0 |
