DRWW TYPE
Classification:
Wide frequency range: 1 MHz to 1000 MHz
Extremely high resistivity: >10⁵ Ω·m
Contact:
Features
● Wide frequency range: 1 MHz to 1000 MHz
● Extremely high resistivity: >10⁵ Ω·m
● Low-Loss
● Best EMI Suppression Capability
● Wide temperature range: -55°C to +150°C
Applications
● RF transformers and chokes
● Switch-mode power supply (SMPS) transformers
● EMI filters
● Broadband noise suppression
● Antenna tuning and RF inductors
● Vehicle sensors and industrial controllers
Parameter
ORDERING CODE

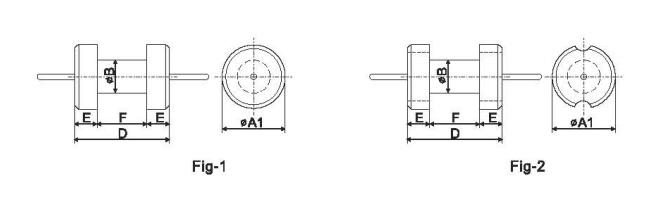

SHAPE
DIMENSIONS(MM)
| ITEM | FIG | A | B | D | E | F |
| DRWW 3x6 | 1 | 3±0.15 | 2.0±0.10 | 6±0.15 | 1.00 REF | 4.00±0.10 |
| DRWW 3x8 | 1 | 3.0±0.15 | 2.0±0.15 | 8.0±0.20 | 1.00 REF | 5.00±0.15 |
| DRWW 3x10 | 1 | 3.0±0.15 | 2.0±0.10 | 10.00±0.30 | 1.75 REF | 6.50±0.20 |
| DRWW 3.5x6 S | 2 | 3.50±0.15 | 2.20±0.15 | 6.00±0.30 | 1.00 REF | 4.00±0.20 |
| DRWW 3.5x9 SR | 2 | 3.50±0.15 | 2.50±0.15 | 9.00±0.30 | 1.00 REF | 6.00±0.20 |
| DRWW 4x10 S | 2 | 4.00±0.15 | 2.00±0.15 | 10.00±0.30 | 2.00 REF | 6.00±0.20 |
| DRWW 4.5x8 SR | 2 | 4.50±0.15 | 2.20±0.15 | 8.00±0.15 | 1.5±0.10 | 5.00±0.15 |
| DRWW 5x10 S | 2 | 5.0±0.20 | 2.75±0.15 | 10.00±0.40 | 1.75±0.20 | 6.50±0.20 |
| DRWW 5x12 S | 2 | 5.0±0.15 | 3.0±0.15 | 12.00±0.30 | 2.00 REF | 8.00±0.20 |
| DRWW 6x13 S | 2 | 8.00±0.15 | 3.00±0.15 | 13.00±0.30 | 2.00 REF | 9.00±0.15 |
| DRWW 8x10 | 2 | 8.00±0.20 | 3.50±0.20 | 10.00±0.30 | 2.00±0.20 | 6.00±0.15 |
| DRWW 10x12 S | 2 | 10.0±0.20 | 5.0±0.20 | 12.00±0.30 | 2.50±0.20 | 7.00±0.20 |
| DRWW 12x15 S | 2 | 12.0±0.20 | 5.0±0.20 | 15.00±0.30 | 2.50±0.20 | 10.00±0.20 |
| DRWW 14x15 S | 2 | 14.00±0.20 | 6.00±0.20 | 15.00±0.30 | 2.50 REF | 10.00±0.30 |
