Hubei Ruiyuan Electronic Co.,Ltd.
RHW
Classification:
Wide frequency range: 1 MHz to 1000 MHz
Extremely high resistivity: >10⁵ Ω·m
Contact:
Features
● Wide frequency range: 1 MHz to 1000 MHz
● Extremely high resistivity: >10⁵ Ω·m
● Low-Loss
● Best EMI Suppression Capability
● Wide temperature range: -55°C to +150°C
Applications
● RF transformers and chokes
● Switch-mode power supply (SMPS) transformers
● EMI filters
● Broadband noise suppression
● Antenna tuning and RF inductors
● Vehicle sensors and industrial controllers
Parameter

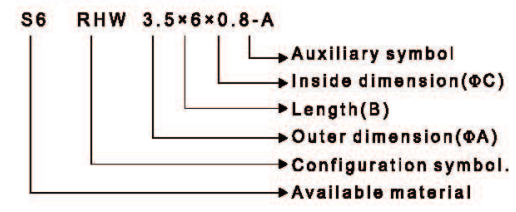

ORDERING CODE

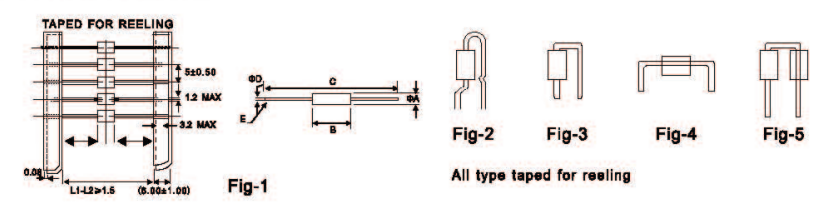

CONFIGURATIONS
DIMENSION OF MAIN PRODUCTIONS
UNIT:MM
| NO | Ordering Code | Fig | ΦA | B | C | ΦD | E |
| 1 | RHW 2.5x4.0x0.8 | 1 | 2.5±0.2 | 4.0±0.3 | 63±1 | 0.65±0.1 | #22 |
| 2 | RHW 3.5x4.7x0.8 | 1 | 3.5±0.2 | 4.7±0.3 | 63±1 | 0.65±0.1 | #22 |
| 3 | RHW 3.5x6.0x0.8 | 1 | 3.5±0.2 | 6.0±0.3 | 63±1 | 0.65±0.1 | #22 |
| 4 | RHW 3.5x7.5x0.8 | 1 | 3.5±0.2 | 7.5±0.3 | 63±1 | 0.65±0.1 | #22 |
| 5 | RHW 3.5x8.0x0.8 | 1 | 3.5±0.2 | 8.0±0.3 | 63±1 | 0.65±0.1 | #22 |
| 6 | RHW 3.5x9.0x0.8 | 1 | 3.5±0.2 | 9.0±0.3 | 63±1 | 0.65±0.1 | #22 |
| 7 | RHW 3.5x6.0x0.8-A | 2 | 3.5±0.2 | 6.0±0.3 | 0.65±0.1 | #22 | |
| 8 | RHW 3.5x6.0x0.8-B | 3 | 3.5±0.2 | 6.0±0.3 | 0.65±0.1 | #22 | |
| 9 | RHW 3.5x6.5x0.8-C | 4 | 3.5±0.2 | 6.0±0.3 | 0.65±0.1 | #22 | |
| 10 | RHW 3.5x6.0x0.8-D | 5 | 3.5±0.2 | 6.0±0.3 | 0.65±0.1 | #22 |
