EI CORES
Classification:
High-Frequency Low-Loss Properties: Exhibit minimal core loss under high-frequency operation (≤3 MHz), ideal for medium-to-high-frequency energy conversion systems
High Permeability: High initial permeability (μi:1500–15000)
Contact:
Features
● High-Frequency Low-Loss Properties: Exhibit minimal core loss under high-frequency operation (≤3 MHz), ideal for medium-to-high-frequency energy conversion systems
● High Permeability: High initial permeability (μi:1500–15000)
● High Saturation Flux Density(Bs): 400–550 mT
● wide temperature range: -40°C to +125°C
● Low Coercivity Hc
Applications
● Switch-Mode Power Supplies (SMPS)
● Inverters & UPS
● Common-Mode Filters
● Broadband Transformers
● Vehicle Power Modules
● Magnetic Sensor Circuits
● RF Front-End Components
● Pulse Transformers
● Wireless Charging Systems
● EMI Suppression Beads
Parameter

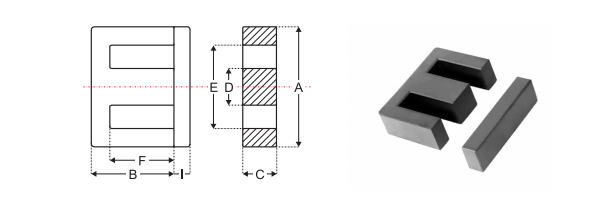

EI CORES Dimensions
| Type | A | B | c | D | E | F | I | Weight(g/set) | ||||
| E112.4/9.1/4.9 | 12.40±0.3 | 755±0.2 | 485±0.2 | 8.8min | 240±0.2 | 510±02 | 150±0.2 | 1.90 | ||||
| E113/12.2/6.21 | 13.00±0.3 | 10.70±0.2 | 6.15±0.2 | 10.05min | 275±0.21 | 930±0.2 | 145±0.2 | 2.80 | ||||
| E116/14.2/4.8 | 16.00±0.3 | 12.20±0.2 | 48.00±0.2 | 11.60min | 400±02 | 10.20±0.2 | 2.00±0.21 | 3.30 | ||||
| E119.1/16/4.8 | 19.10±0.3 | 13.60±0.2 | 480±0.2 | 14.00min | 4,55+0.25 | 1120±0.3 | 240±021 | 4.10 | ||||
| I EI20/16/5 | 20.00±0.4 | 13.60±0.2 | 5.00±0.21 | 14.30min | 4,55±0.21 | 1120±0.3 | 2,40±0.21 | 4.50 | ||||
| E122/19.2/5.8 | 22.00±0.5 | 15.20±0.3 | 5.75±0.25 | 15.60min | 5.75±0.25 | 1120±0.3 | 14.00±0.31 | 8.50 | ||||
| EI21.8/8.6/15.8 | 21.80±0.4 | 570±0.2 | 15.80±0.3 | 16.40min | 5.00±0.2 | 320±0.2 | 2.90±0.15 | 11.00 | ||||
| E122/19/5.7 | 22.00±0.5 | 15.00±0.3 | 5.70±0.25 | 15.60min | 5.70±0.25 | 11.20±0.3 | 14.00±0.31 | 8.80 | ||||
| E123/24.4/10 | 23.00±0.4 | 1220±0.15 | 10.00±0.2 | 18.40min | 7.00+01/-0.2 | 10.20±0.15 | 200±0.1 | 8.90 | ||||
| E125/20.1/6.5 | 25.00±0.5 | 16.85±0.25 | 6.50±0.31 | 18.30min | 6.50±0.31 | 13.60±0.3 | 3.20±0.31 | 10.70 | ||||
| E128/20.5/10.7 | 28.00±0.6 | 17.00±0.3 | 10.70±0.3 | 18.60min | 7.25±0.25 | 1260±0.3 | 3.50±0.31 | 21.50 | ||||
| E129/20.5/10.7 | 29.00±0.6 | 17.00±0.3 | 10.70±0.3 | 20.00min | 7.25±0.25 | 12.60±0.3 | 3.50±0.31 | 22.00 | ||||
| E130/26.9/10.7 | 30.00±0.7 | 21.40±0.3 | 10.70±0.3 | 19.50min | 10.70±0.3 | 16.60±0.3 | 5.50±0.31 | 33.00 | ||||
| E131/27.A/10.7 | 31.00±0.7 | 21.90±0.3 | 10.70±0.3 | 20.50min | 10.70±0.3 | 1690±0.3 | 5.50±0.31 | 34.00 | ||||
| E133/28.8/12.7 | 33.00±0.6 | 23.75±0.3 | 12.70±0.3 | 23.50min | 9.70±0.3 | 19.25±0.3 | 5.00±0.3 | 41.00 | ||||
| E140/34.7/11.7 | 40.00±0.7 | 27.20±0.3 | 11.70±0.3 | 27.20min | 11.70±0.3 | 20.50±0.3 | 7.50±0.31 | 60.00 | ||||
| E150/42.4/14.6 | 50.00±1.0 | 33.40±0.4 | 14.60±0.4 | 33.50min | 14.60±0.3 | 24.75±0.3 | 9.00±0.31 | 111.50 | ||||
Electrical Characteristics
| Type | Core Parameters | A.value nH/N±25% | ||||||||
| C1(mm-1) | Ae(mm2) | le(mm) | Ve(mm3) | RP40 | RP44 | RP47 | RP50 | RP90 | RP95 | |
| E1124/9.1/49 | 10.73 | 15.00 | 20.60 | 309.60 | 1350 | 1350 | 1350 | 780 | 1200 | 1800 |
| EI13/12.2/6.21 | 10.61 | 18.10 | 29.80 | 540.40 | 1070 | 1070 | 1070 | 600 | 980 | 1420 |
| E116/14.2/4.8 | 10.58 | 19.80 | 34.40 | 682.90 | 1070 | 1070 | 1070 | 600 | 980 | 1420 |
| EI19.1/16/4.81 | 10.59 | 23.00 | 39.00 | 936.00 | 1250 | 1250 | 1250 | 720 | 1100 | 1600 |
| E120/16/5 | 10.61 | 24.00 | 39.30 | 905.30 | 1280 | 1280 | 1280 | 740 | 1150 | 1700 |
| EI22/19 2/5.81 | 0.86 | 36.98 | 42.88 | 1585.70 | 1630 | 1630 | 1630 | 950 | 1450 | 2150 |
| EI21.8/8.6/15.8 | 3.03 | 79.00 | 26.05 | 2058.00 | 4500 | 4500 | 4500 | 2600 | 4100 | 6000 |
| E122/19/5.7 | 10.85 | 38.00 | 44.60 | 1698.50 | 1600 | 1600 | 1600 | 930 | 1450 | 2100 |
| E123/24.4/10 | 11.10 | 43.30 | 39.50 | 1715.60 | 2000 | 2000 | 2000 | 1160 | 1800 | 2600 |
| EI25/20.1/6.5 | 10.87 | 42.60 | 49.10 | 2094.30 | 1800 | 1800 | 1800 | 1050 | 1650 | 2400 |
| E128/20.5/10.7 | 11.72 | 84.40 | 49.00 | 4135.90 | 3800 | 3800 | 3800 | 2200 | 3450 | 5000 |
| E129/205/10.7 | 1.65 | 83.40 | 50.40 | 4200.00 | 3800 | 3800 | 3800 | 2200 | 3450 | 5000 |
| EI30/269/10.7 | 1.89 | 110.30 | 58.40 | 643610 | 38.00 | 3800 | 38.00 | 2200 | 3450 | 5000 |
| EI31/27.4/10.7 | 1.84 | 111.00 | 60.40 | 670210 | 3800 | 3800 | 3800 | 2200 | 3450 | 5000 |
| EI33/28.8/12.7 | 1.76 | 119.30 | 67.60 | 8067.40 | 3800 | 3800 | 38.00 | 2200 | 3450 | 5000 |
| E140/34.7/11.7 | 11.91 | 147.40 | 77.20 | 11373.70 | 4500 | 4500 | 4500 | 2600 | 4100 | 6000 |
| EI50/424/14.6 | 12.66 | 250.70 | 94.30 | 23653.60 | 5500 | 5500 | 5500 | 3200 | 5000 | 7300 |
